Thursday, April 27, 2017

Upgrades

In response to the +/-3 thousandths that I found in run out on my mini lathe, I took executive action. I played golf, I pushed all my responsibility onto China since that's where the lathe is from and continued convincing myself that would solve the problem. Turns out this didn't solve anything. So I stepped up and decided to-do something.
I gutted the whole lathe to address my bearings. I upgraded to roller taper bearings. Took a week to get them via Amazon prime ($22) but they got here eventually. After chilling the spindle in the freezer and heating the bearings everything was eventually banged into place with a deadblow hammer and some chunks of wood. Run out is now +/- 1/2 thou and the machine just seems completely different. Smoother quieter tougher... great upgrade. I would attribute all of the change, solely to the bearings but I also bolted the lathe to a 60 lb piece of 1" inch plate steel.... effectively doubling the weight of the machine -might- have something to do with it but I will leave that to the muses to speculate. Fresh coat of paint (another upgrade from the ugly gree) gives it at least 5 more hp.

Saturday, April 15, 2017

Slow grind

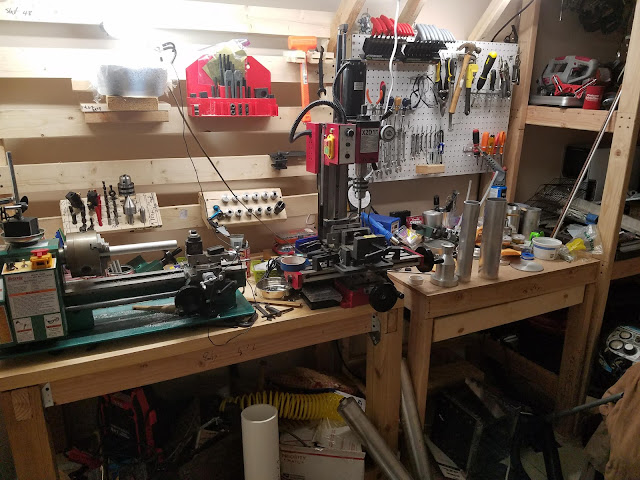

Been building one day and one dollar at a time. Infrastructure is my new game. Couple grand in but still much to be done. Lathe and mill bought. Cylinders for brazing aluminum acquired. Materials ate in. Designs have been designed. My new rocket is going to be a 250lbf flyable model. It's a bit of a living mess for the time being but more to come.
